- Size: 60CBM
- Place of Origin: CHINA
- Brand Name: BEIBEN
- Model Number: North Benz 6*4 heavy truck tractor 340hp 10 tire Beiben tractortruckbest price
- Weight: 9200.000 kg

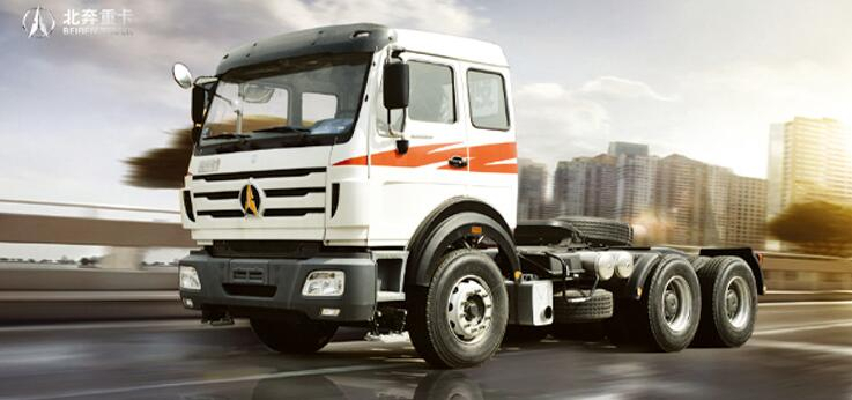

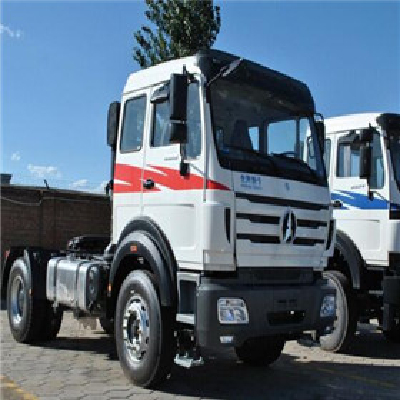

North Benz 6*4 heavy truck tractor 340hp 10 tire Beiben tractortruckbest price
Parameter
| 2534SZ /6×4/3450+1450/Long Cab/LHD | ||
| Dimension | 6935*2495*3180mm | |
| Approaching angle/Departure angle | 26/64° | |
| Overhang(front/rear) | 1410/625mm | |
| Wheel base | 3400+1450mm | |
| Max speed | 90km/h | |
| Curb weight | 9200kg | |
| Max towing weight | 39600kg | |
| Max loading on fifth wheel, Permitted(kg) | 15670kg | |
| Slope climbing capability | Max.40% | |
| Engine | Model | WP10.340E32 ， water-cooled ， four strokes ， 6 cylinders in line ， turbocharged, directly injection |
| Displacement | 9.726L/Diesel | |
| Stroke | 126/130mm | |
| Max. power | 276/2200 (kw/rpm) | |
| Max.torque | 3500/1200-1600 （ Nm/rpm ） | |
| Emission stantard | Euro Ⅲ | |
| Fuel tanker capacity | 400L | |
| Clutch | ∮ 430, Single dry frictional disc ， Hydraulic boosting | |
| Gearbox | 12JS160T, mechanism,12forward gears,2 reverse gear, manual operated | |
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33 | |
| Suspension system | Front | Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension , 13pcs |
| Rear | Non-free standing stabilization spring, balance suspension system, 13pcs | |
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system |
| Assistant brake | Engine exhaust brake | |
| Park brake | Potential springs pressing on middle and rear wheels | |
| Steering system | ZS8098,whole circulation in ball, hydraulic booster | |
| Frame | Fish belly shape, variable width, variable sections | |
| Model | JOST ∮ 90 single direction | |
| Height of fifth wheel(mm) (unload) | 1410 | |
| Radius of front gap (mm) | 2300 | |
| Radius of rear slew (mm) | 2600 | |
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |
| Tire | 12.00/R20 | |
| Electrical system | Battery | 2X12V/135Ah |
| Generator | 28V-35A | |
| Starter | 5.4Kw/24V | |
| Cabin | NG80B Long-Flat roof cabin with single sleeper | |
