Product Details
- Size: 80CBM
- Place of Origin: CHINA
- Brand Name: BEIBEN
- Model Number: 3138K
- Weight: 14500.000 kg

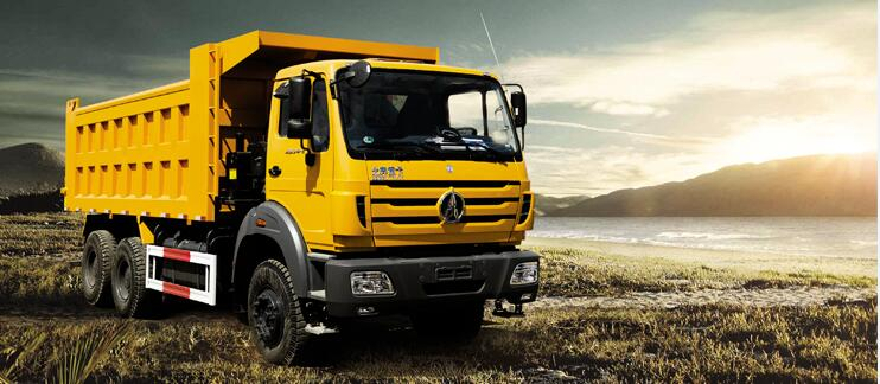

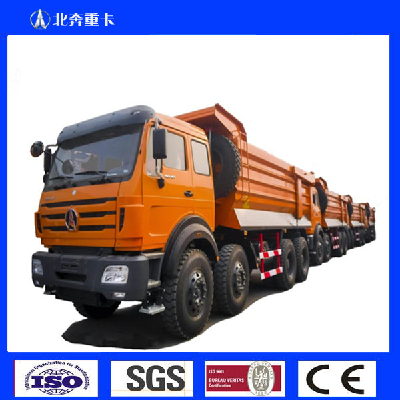

Beiben North Benz 8x4 Tipper Dump Truck 3138K
Parameter
| Sales No. | 3138K | |
| Dimension（mm) | Long | 10380 |
| Wide | 2500 | |
| High | 3484 | |
| Wheel base（mm） | 1500+4150+1450 | |
| Drive | 8×4 | |
| Engine | Model | WP10.380E32 |
| Cabin | NG80B/Long cab | |
| Clutch（mm） | Φ430 | |
| Front Axle | 7.5T | |
| Rear/Mid Axle | Model/speed radio | Double Reduction Driving Axle /5.263 |
| Steering System | ZF8098 | |
| Braking System | Dual Circulation Air Brake System | |
| Fuel Tank（L） | 400L | |
| Frame/mm | 317×70×8.5+7+8mm | |
| Tire | 12.00R20 | |
| Front/Rear Overhang | 1410/2060 | |
| Transmission | Fuller 12JS200T | |
| Curb Weight（kg) | 14980 | |
| Up Body Volume(m³) | 7.5mx2.3mx1.5m | |
| Max Speed（km/h) | 90 | |
