- Size: 80CBM
- Place of Origin: CHINA
- Brand Name: BEIBEN
- Model Number: ND33100B41J
- Weight: 14500.000 kg

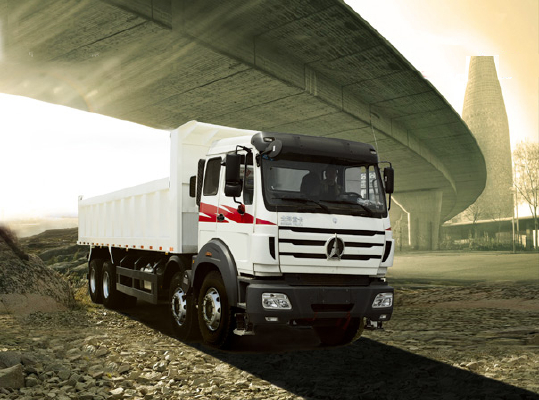

Beiben North Benz 8x4 NG80 Tipper/Dump Truck 3134K | |
Model | 3134K |
Engine | Weichai WP10.340E32, 340HP |
Displacement | 9.726L |
Transmission | 12JS160T gearbox, 12 forward, 2reverse |
Steering | ZF8098 hydraulic steering with power assistance |
Clutch | GFX430, Single dry frictional disc, Hydraulic boosting |
Front axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, non-driving steering axle |
Middle Rear axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
Cab | NG80B short cab, inner A/C, no bed |
Rim/Tires | 12.00R20radial tire (one spare tire) |
Cargobox Dimensions | 7500x2300x1400mm |
Thickness of Cargobox | 8mmx6mm |
Overall Dimensions | 8120×2500×3430mm |
Wheel base(mm) | 1500+4150+1450mm |
Color | white, yellow |
Fuel Tank | 300L |
