Product Details
- Size: 110
- Place of Origin: China
- Brand Name: BEIBEN
- Model Number: 3134FZ
- Weight: 15000.000 kg

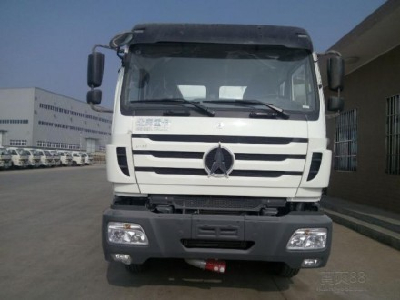

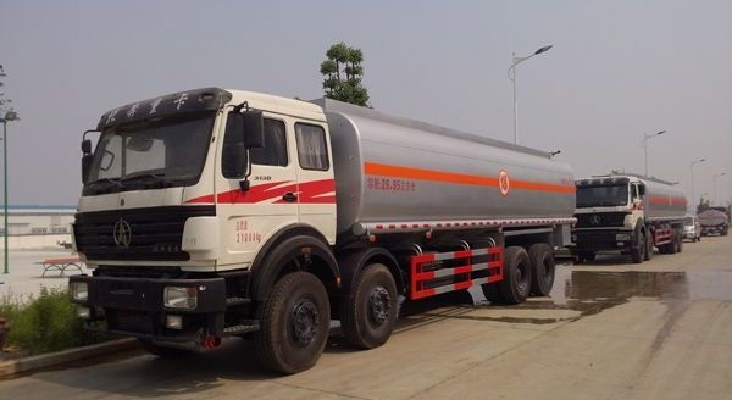

Beiben North Benz 6*4 8*4 Fuel Tank Truck 20-40CBM Capacity
Parameter
| 2534FZ Fuel tank /6×4/4450 1450/Long Cab/LHD | ||||||
| Dimension | 9465*2500*3305mm | |||||
| Approaching angle/Departure angle | 16/17° | |||||
| Overhang(front/rear) | 1480/2085mm | |||||
| Wheel base | 4450 1450mm | |||||
| Max speed | 80km/h | |||||
| Curb weight | 12270kg | |||||
| Loading capacity | 12600kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.336，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 247/2200 (kw/rpm) | |||||
| Max.torque | 1350/1200-1600（Nm/rpm） | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 400L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox | 12JS160T, mechanism,12 forward gears,2 reverse gear, manual operated, | |||||
| Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00R20 Radial | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin | NG80B Long cabin with single sleeper; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C | |||||
| Main parameter for the upper body | ||||||
| Effective Volume | 20 CBM | |||||
| Air Compressor Model | 76YHCB-50 | |||||
| Material of Tank | Q235B | |||||
| Number of baffles | 4 | |||||
| Tank thickness | 5 mm | |||||
| Copped End thickness | 6 mm | |||||
