Product Details
- Size: 95
- Place of Origin: China
- Brand Name: BEIBEN
- Model Number: 2538ak
- Weight: 12500.000 kg

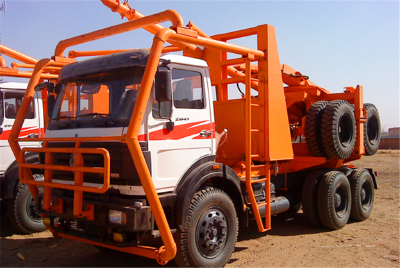

Beiben North Benz 2538AK Wood/Log Transport Truck
Parameter
| 2538AK Logging Truck /6×6/3800 1450/Short Cab/LHD | ||||||
| Dimension | 8530*2500*3310mm | |||||
| Approaching angle/Departure angle | 26/32° | |||||
| Overhang(front/rear) | 1410/1870mm | |||||
| Wheel base | 3800 1450mm | |||||
| Max speed | 85km/h | |||||
| Curb weight | 12400kg | |||||
| Loading capacity | 12470kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.375，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection | ||||
| Displacement | 11.596L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 276/2200 (kw/rpm) | |||||
| Max.torque | 1460/1200-1600（Nm/rpm） | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 400L | |||||
| Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |||||
| Gearbox | 12JS160T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer | |||||
| Transfer canse | LF 200 | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00-24 | |||||
| Electrical system | Battery | 2X12V/180Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin | NG80B Short cabin; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver; With inner A/C； With low temperature starting system | |||||
