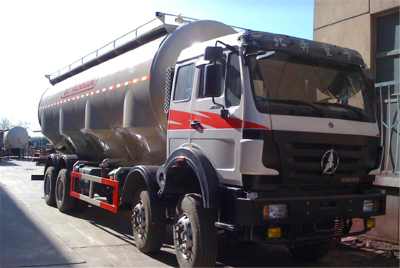

Beiben North Benz 12 Wheeler/8x4 Cement Tank/Tanker Truck 40m3/CBM Capacity
NG80-FZ: The overall designing of the vehicles is pleasing to the eyes. The brand new NG80B driving cab is created by the company. The structure of metal framework and stressed-skin exclusive to the domestic heavy-duty trucks makes possible the security of European vehicles at the same level, and can satisfy the requirements of European ECER29 Security Regulations. The vehicle frame is molded by stamping and this guarantees the strength of the crossbeams. The axle technique unique to Benz vehicles boasts of features such as high reliability, fuel economy, high attendance rate, large cargo capacity, strengthened structure which caters to various modification requirements.
3134FZ Cement tank /8×4/1500 4750 1450/Long Cab/LHD | ||
Dimension | 11925*2500*3950mm | |
Approaching angle/Departure angle | 26/15° | |
Overhang(front/rear) | 1410/2815mm | |
Wheel base | 1500 4750 1450mm | |
Max speed | 90km/h | |
Curb weight | 18670kg | |
Loading capacity | 12200kg | |
Slope climbing capability | Max.40% | |
Engine | Model | WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection |
Displacement | 9.726L/Diesel | |
Stroke | 126/130mm | |
Max. power | 250/2200 (kw/rpm) | |
Max.torque | 1350/1200-1600（Nm/rpm） | |
Emission stantard | EuroⅢ | |
Fuel tanker capacity | 400L | |
Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |
Gearbox | 12JS160T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer | |
Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 | |
Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 12pcs |
Rear | Non-free standing stablization spring, balance suspension system, 12/13pcs | |
Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake | Engine exhaust brake | |
Park brake | Potential springs pressing on middle and rear wheels | |
Steering system | TAS85,whole circulation in ball, hydraulic booster | |
Frame | Fish belly shape, variable width, variable sections | |
Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |
Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |
Tyre | 12.00R20 Radial | |
Electrical system | Battery | 2X12V/135Ah |
Generator | 28V-35A | |
Starter | 5.4Kw/24V | |
Cabin | NG80B Long cabin with single sleeper; | |
Main parameter for the upper body | ||
Effective Volume | 40 CBM | |
Air Compressor Model | 10/2 Korean technology made in Qingdao | |
Material of Tank | Q345B | |
Length of out put pipe (M) | 5 m | |
Tank thickness | 4 mm | |
Copped End thickness | 6mm | |
Outage number | 2 | |
Discharging speed | 1 CBM/MIN | |
