- Size: 80CBM
- Place of Origin: CHINA
- Brand Name: BEIBEN
- Model Number: ND3251B38J
- Weight: 14500.000 kg

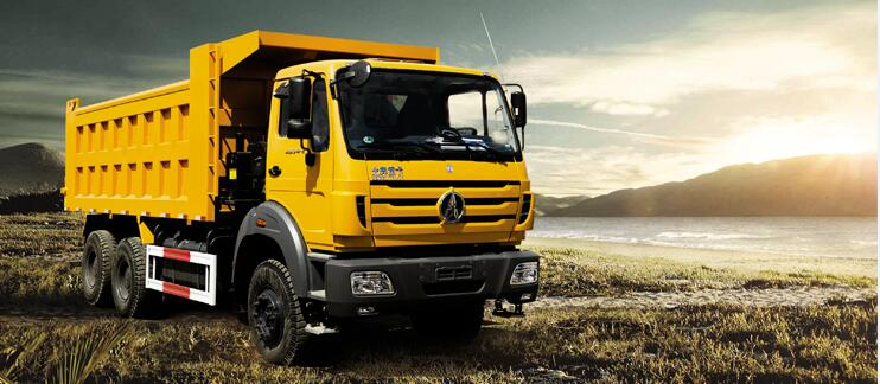

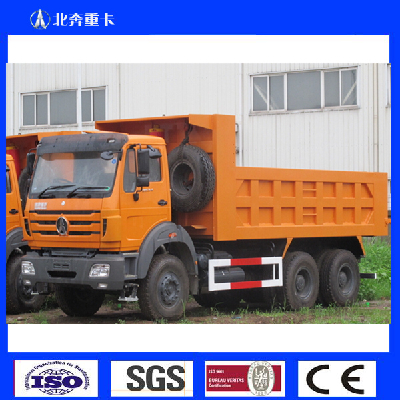

Beiben Dump Truck 6*4 Dumper Sand Tipper Truck
Overall Dimension (mm×mm×mm) | 8000×2500×3490 | |||
Wheel base (mm) | 3200+1350 | |||
Curb weight (kg) | 11800 | |||
Max Speed(Km/h) | ≥80 | |||
Dimension for Upper body: | 4800*2300*1200mm=13m3 | |||
Bottom 6 mm,side 4 mm,Front Lifting | ||||
Engine | Model | WP10.290E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged, | ||
Fuel type | Diesel | |||
Emission | EURO2 Mechanic Pump | |||
Rated Power / rotating | 213Kw(290hp)/2200rpm | |||
Maximum Torque/ rotating speed | 1160Nm/1200-1600rpm | |||
Displacement | 9726 | |||
Fuel tanker capacity (L) | 300L aluminum | |||
Clutch | Model | Φ430, Diaphragm Spring,Hydraulic boosting | ||
Gearbox | Model | 9JS135,mechanism, 9 forward gears, 1 reverse gear, manual operated, | ||
Gear ratio of speed | 12.65/8.38/6.22/4.57/3.40/2.46/1.83/1.34/1.00 R1: 13.22 | |||
Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||
Assistant brake | Engine exhaust brake | |||
Park brake | Potential springs pressing on middle and rear wheels | |||
Steering system | Model | D50, whole circulation in ball type, hydraulic boosting | ||
Suspension System
| Front Suspension | Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension,9pcs spring | ||
Rear Suspension | Non-free standing stabilization spring, stabilization suspension,10pcs. | |||
Frame | Same width, same sections: 280×80×8+5mm (Benz Technology) | |||
Front axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, 5.5t no-driving steering axle | |||
Middle and Rear axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons single reduction driving axle, speed ratio4.875 | |||
Tire | 11.00R20 | |||
Qty of tire | 11 | |||
Electrical system | Battery | 2X12V/135Ah | ||
Generator | 28V-70A | |||
Starter | 5.4Kw/24V | |||
Cab
| NG80B Short cab without sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; | |||
Interior trimming: Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C。 | ||||
Exterior trimming: Metal bumper, three steps, new mirror, outside sun visor |
- Size: 80CBM
- Place of Origin: CHINA
- Brand Name: BEIBEN
- Model Number: ND3251B38J
- Weight: 14500.000 kg
