- Size: 60CBM
- Place of Origin: CHINA
- Brand Name: BEIBEN
- Model Number: ND4253B34J7
- Weight: 9200.000 kg

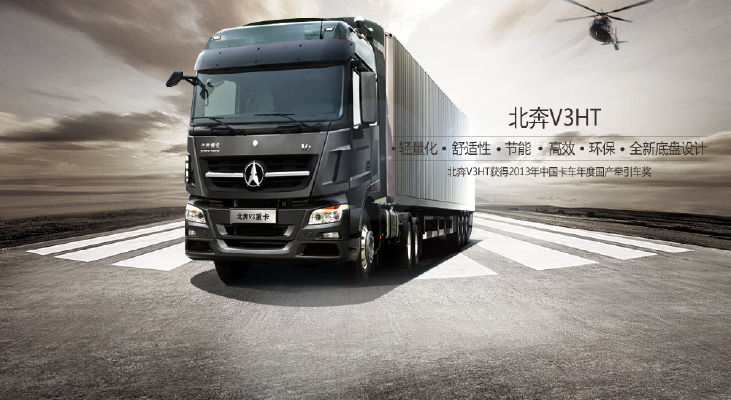

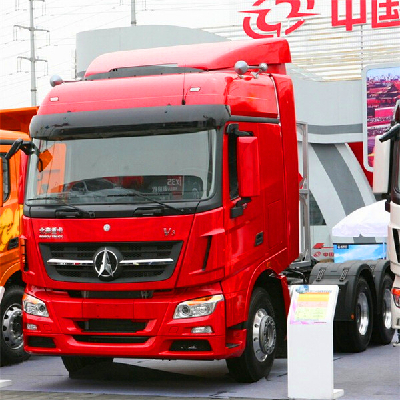

BEIBEN North Benz 6x4 V3 Tractor Truck 460HP
Parameter
Dimension | 7240*2500*3600mm | |
Approaching angle/Departure angle | 16/60° | |
Overhang(front/rear) | 1515/825mm | |
Wheel base | 3450+1450mm | |
Max speed | 110km/h | |
Curb weight | 8800kg | |
Max towing weight | 40000kg | |
Max loading on fifth wheel, Permitted(kg) | 16070kg | |
Slope climbing capability | Max.40% | |
Engine | Model | WP12.460N，water-cooled, four-stoke, exhaust brake, direct injection, turbocharged intercooled, ECU Common Rail |
Displacement | 11.596L/Diesel | |
Stroke | 126/155mm | |
Max. power | 338/1900 (kw/rpm) | |
Max.torque | 2110/1000-1400（Nm/rpm） | |
Emission standard | EuroIII | |
Fuel tanker capacity | 400L | |
Clutch | ∮430, Single dry frictional disc，Hydraulic boosting | |
Gearbox | 12JS200T, mechanism,12forward gears,2 reverse gear, manual operated | |
Gear ratio of gear box | 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33 | |
Suspension system | Front | Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension , 13pcs |
Rear | Non-free standing stabilization spring, balance suspension system, 13pcs | |
Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake | Engine exhaust brake | |
Park brake | Potential springs pressing on middle and rear wheels | |
Steering system | TAS85,whole circulation in ball, hydraulic booster | |
Frame | Fish belly shape, variable width, variable sections | |
The Fifth wheel | Model | JOST ∮90 single direction |
Height of fifth wheel(mm) (unload) | 1410 | |
Radius of front gap (mm) | 2300 | |
Radius of rear slew (mm) | 2600 | |
Front axle (Mercedes Technology) | Double-shoe pneumatic brake, non-driving steering axle | |
Middle and Rear axle (Mercedes Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |
Tire | 12.00-R20 | |
Electrical system | Battery | 2X12V/135Ah |
Generator | 28V-35A | |
Starter | 5.4Kw/24V | |
Cabin | V3 Long-high roof cabin with double sleepers | |
- Size: 60CBM
- Place of Origin: CHINA
- Brand Name: BEIBEN
- Model Number: ND4253B34J7
- Weight: 9200.000 kg
